Our broadcast OB van: a 4K production control room on wheels, with integrated cablecam and drones.
Broadcast
The OB van
A TV control room on wheels

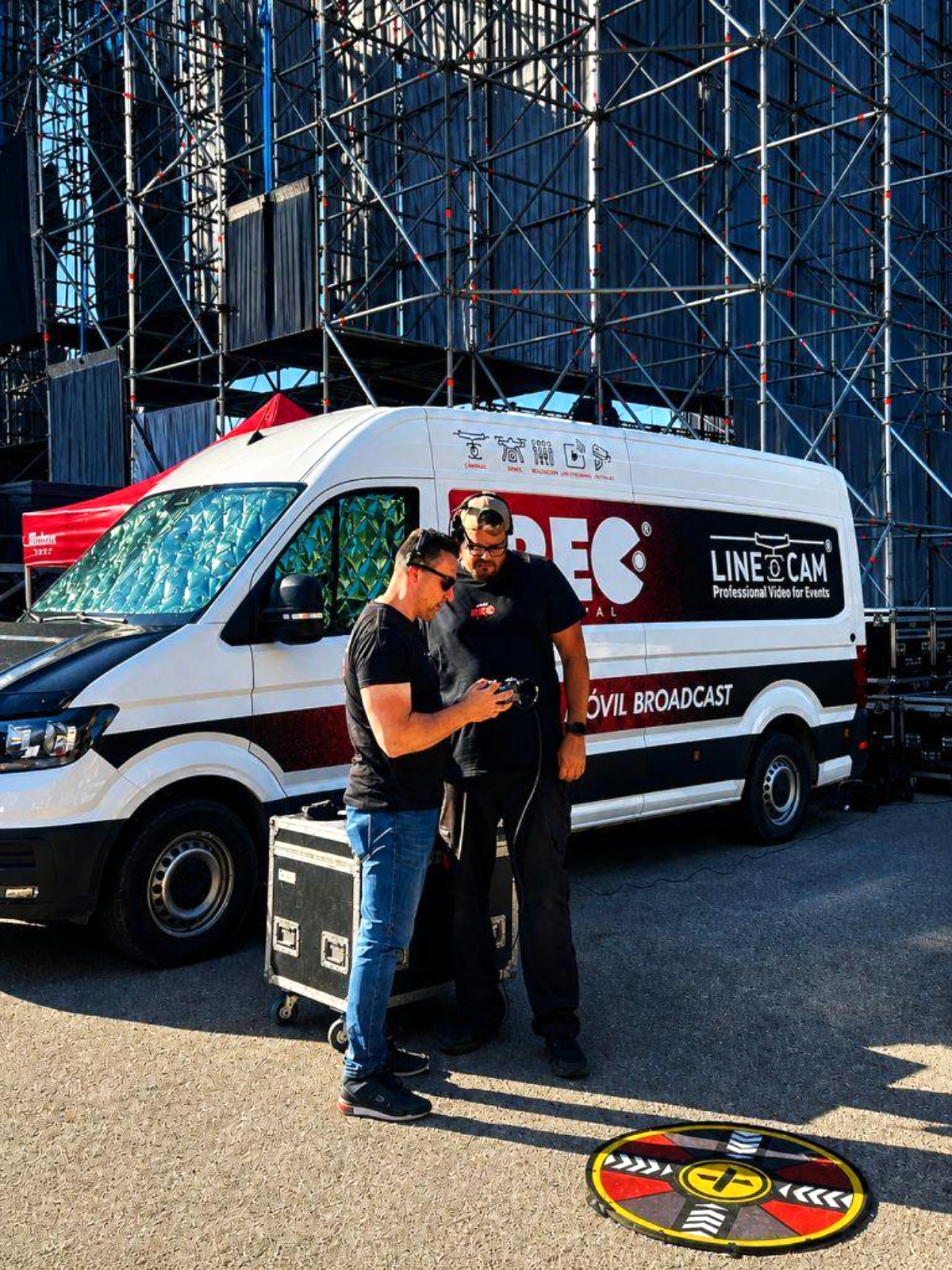

A long-wheelbase, high-roof Volkswagen Crafter, fully fitted out as a production control room. It arrives at the venue, sets up and goes on air.
- VehicleVW Crafter 35Long wheelbase L4H3, high roof
- Engine2.0 TDI4 cylinders · 130 kW (177 hp)
- Length6,836 mmWheelbase 4,490 mm
- Width2,040 mmWithout mirrors
- Height2,798 mmH3 high roof
- GVW3,500 kgFitted out and equipped
- Usable interiorUp to 4,855 mmBody length
- Positions2 + technicianProduction, audio and streaming
4K productionBroadcast camerasStreamingDronesCablecamCCTV19" 12G-SDI video rackMultiview and programme monitoringAudio mixingIntercomAir conditioningUPS on the whole rackOwn connectivity · StarlinkExternal connection panels
The Dale al REC Visual and LINECAM® OB van is a TV control room on wheels: we arrive at the venue, run fibre and cameras, and within a few hours you have 4K multi-camera production with outputs for LED screens, streaming and recording. It is the same unit we use to cover festivals and concerts in stadiums and arenas all over Spain, with more than 100 festivals behind us.
OB van · Dale al REC × LINECAM®204K sources in production
7Our own cablecam systems
2,500 mOf deployable fibre and SDI
Inside

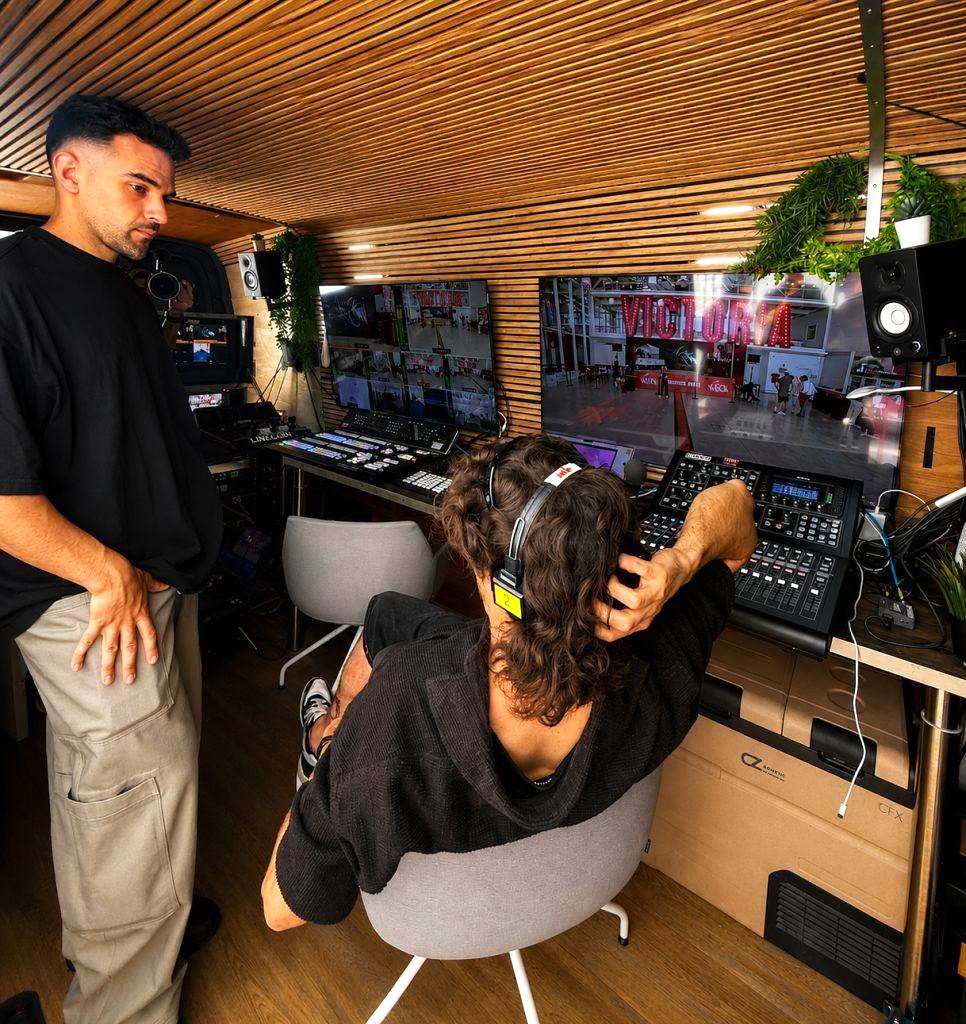

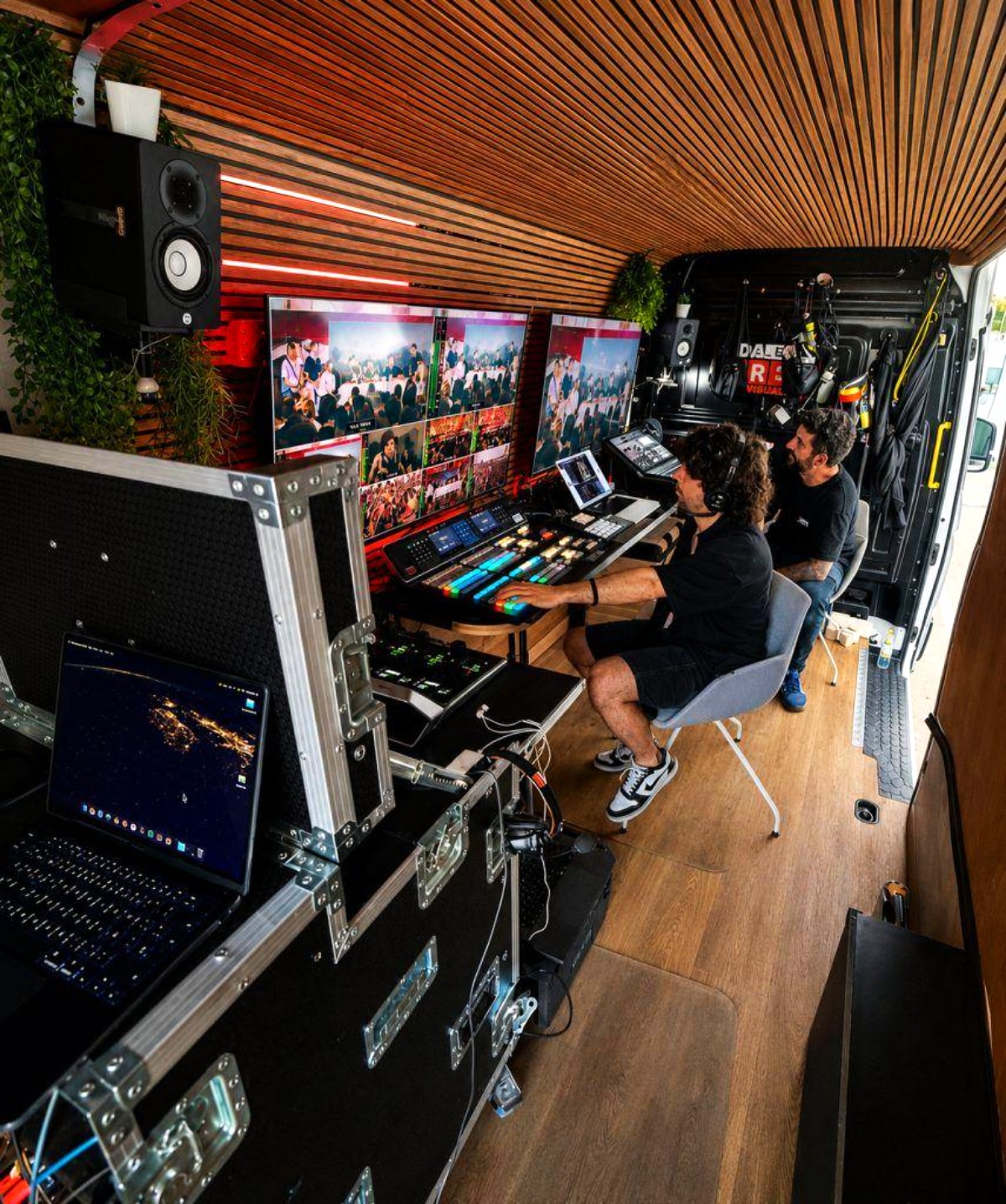

12G-SDI video rack, camera control, recording, audio mixing, intercom and positions for director, vision mixer and streaming technician, with air conditioning and UPS on the whole rack.
What the OB van includes
- 4K vision mixer with multiview, ISO recording of all cameras and programme master.
- Broadcast cameras Blackmagic URSA Broadcast G2 with CCU, Fujinon lenses and FOH, side, stage and B-roll positions.
- LINECAM® cablecam and drones integrated into the production, with wireless transmission to the control room.
- Wireless intercom for director, cameras, stage management and production.
- Multi-platform streaming with redundant encoders and connectivity via fibre, 4G/5G bonding or Starlink.
- Live graphics and captions: identifiers, sponsors, scoreboards and client content.
What kind of events it is for
The OB van is designed for productions where the live signal is part of the show or where streaming is critical: festivals and concerts (IMAG feed for the stage screens), sporting events, galas and award ceremonies, large conferences and institutional broadcasts. We also rent it to other production companies and TV channels with our technical crew.
How we run a live show with the OB van
- Technical visit and camera plan. We study the venue, positions, cable runs, power supplies and set-up windows.
- Set-up and testing. Fibre, cameras, cablecam, intercom and signal tests with production, lighting and screens.
- Production. Director, vision mixer, CCU technician, camera operators and streaming technician coordinated by intercom.
- Delivery. Programme master, ISOs per camera and social media clips on the same day.
Need the OB van for your event? Tell us the venue, dates and number of cameras and we'll prepare a proposal. More technical information at unidadmovil.com.
Work
OB van projects
NewRental
Related equipment
Cameras and lensesBlackmagic URSA Broadcast G2
4K/6K broadcast camera with CCU for multi-camera, IMAG and streaming.
View details →
Connectivity and dronesFibre optics and SDI cabling
Single-mode fibre reels, 12G SDI and converters for large venues.
View details →
Sound and intercomHollyland Solidcom intercom
Full-duplex wireless intercom for production crews, up to 9 users per hub.
View details →FAQ
Frequently asked questions
How many cameras can the OB van handle?
The usual set-up is 4 to 8 broadcast cameras plus cablecam and drone, expandable with a larger switcher for special productions. Each camera is recorded as an ISO as well as the programme master.
Does the OB van travel outside Andalusia?
Yes. We regularly work in Madrid, Barcelona, Valencia, the Canary Islands and anywhere in Spain. Travel is quoted according to dates and venue.
Can you stream from a venue without internet?
Yes. We bring our own connectivity: 4G/5G bonding and Starlink antennas, with a dual encoder to guarantee the broadcast.
